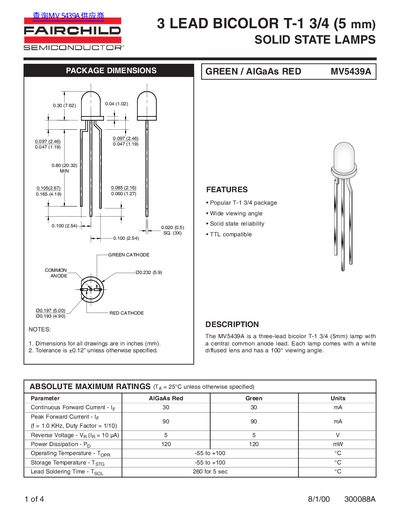

This document introduces the features and characteristics of MV5439A three-lead bicolor T-1 3/4 (5mm) solid state lamps, including dimensions, working current, working temperature, etc.
The MV5439A is a three-lead bicolor T-1 3/4 (5mm) lamp featuring a central common anode lead. It is equipped with a white diffused lens and provides a 100° viewing angle. The device is designed for solid state reliability and is TTL compatible.
| Package Type | T-1 3/4 (5mm) |
|---|---|
| Viewing Angle | 100° |
| Power Dissipation | 120 mW |
| Operating Temperature | -55 to +100 °C |
| Wavelength (Red) | 660 nm |
| Wavelength (Green) | 565 nm |
It is a three-lead bicolor T-1 3/4 (5mm) lamp with a central common anode lead.
The MV5439A has a 100° viewing angle.
Yes, the MV5439A is TTL compatible.
