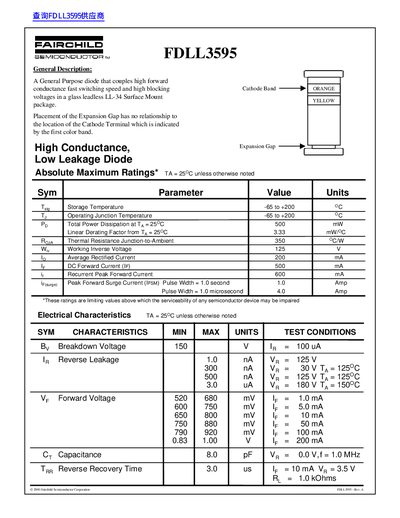

This document is the FDLL3595 datasheet, providing the product's characteristic parameters information.
This document describes the FDLL3595, a general-purpose diode designed for high forward conductance, fast switching speed, and high blocking voltages. It is packaged in a glass leadless LL-34 Surface Mount package. The diode features a cathode band indicated by an orange color and a yellow expansion gap, though the placement of the gap has no relationship to the cathode terminal location.
The datasheet provides absolute maximum ratings, electrical characteristics, and mechanical dimensions. Key electrical parameters include a working inverse voltage of 125V, an average rectified current of 200mA, and a forward voltage ranging from 520mV to 1.00V depending on the test current. The device operates within a storage temperature range of -65°C to +200°C.
| Working Inverse Voltage | 125 V |
|---|---|
| Peak Forward Surge Current (1.0 microsecond) | 4.0 Amp |
| Breakdown Voltage | 150 V |
| Reverse Leakage Current (Va = 125V) | 1.0 nA |
| Capacitance | 8.0 pF |
| Reverse Recovery Time | 3.0 us |
| Storage Temperature | -65 to +200 °C |
The device is available in a glass leadless LL-34 Surface Mount package.
No, the placement of the expansion gap has no relationship to the location of the cathode terminal.
