This document describes a surface mount LED lamp with a reflector package, AllnGaP technology, and a wide viewing angle. The product features water clear optics, moisture-proof packaging, and is suitable for applications such as backlighting and status indication.

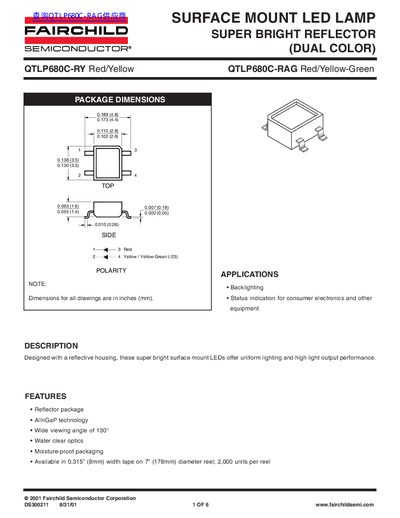

This document is a datasheet for the Fairchild Semiconductor QTLP680C-RY, a dual color surface mount LED lamp featuring Red/Yellow output. The device utilizes AllnGaP technology and is designed with a reflective housing to provide uniform lighting and high light output performance.
| Reverse Voltage | 5 V |
|---|---|
| Operating Temperature | -40 to +85 °C |
| Viewing Angle | 130° |
| Peak Wavelength | 630 / 590 nm |
The maximum forward voltage is 2.4V.
The maximum continuous forward current is 30 mA.
The maximum reverse voltage is 5 V.
The leads can be soldered at 260°C for 5 seconds.
