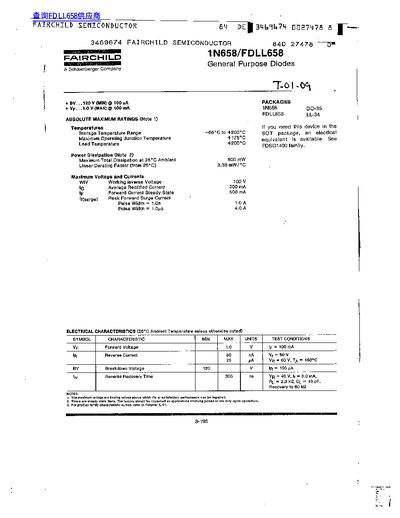

The document is a technical datasheet for the Fairchild Semiconductor 1N658/FDLL658 General Purpose Diode. It lists absolute maximum ratings, including a storage temperature range of -65°C to +200°C and a maximum operating junction temperature of +175°C. The device is available in DO-35 and LL-34 packages with a maximum power dissipation of 500 mW at 25°C ambient temperature.
| Storage Temperature Range | -65°C to +200°C |
|---|---|
| Maximum Operating Junction Temperature | +175°C |
| Power Dissipation | 500 mW |
| Average Rectified Current | 200 mA |
| Forward Current Steady State | 500 mA |
| Forward Voltage | 1.0 V |
| Reverse Current | 50 nA |
| Breakdown Voltage | 120 V |
| Reverse Recovery Time | 300 ns |
The maximum total dissipation at 25°C ambient is 500 mW.
The reverse recovery time is 300 ns under specific test conditions.
