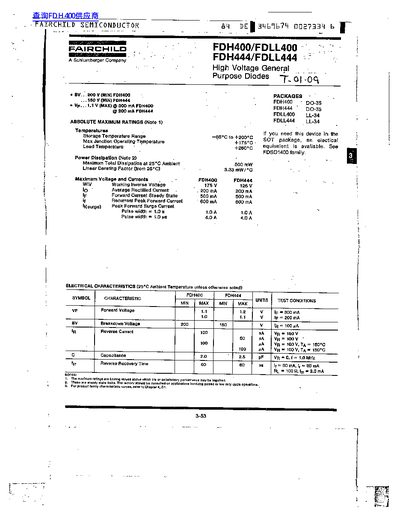

This document is a datasheet for the Fairchild Semiconductor FDH400, FDH444, FDLL400, and FDLL444 High Voltage General Purpose Diodes. It provides technical specifications including absolute maximum ratings such as maximum junction operating temperature and power dissipation.
| Average Rectified Current | 200 mA |
|---|---|
| Recurrent Peak Forward Current | 600 mA (FDH400) / 800 mA (FDH444) |
| Peak Forward Surge Current (1.0 us) | 4.0 A |
| Breakdown Voltage | 200 V (FDH400) / 150 V (FDH444) |
| Reverse Current (VR = 150 V) | 100 nA |
| Capacitance | 2.0 pF to 25 pF |
The average rectified current is 200 mA for both the FDH400 and FDH444.
