This document describes the absolute maximum ratings, thermal characteristics, and electrical characteristics of the FDLL457A small signal diode. The diode has features such as a maximum repetitive reverse voltage of 70V and an average rectified forward current of 200mA.

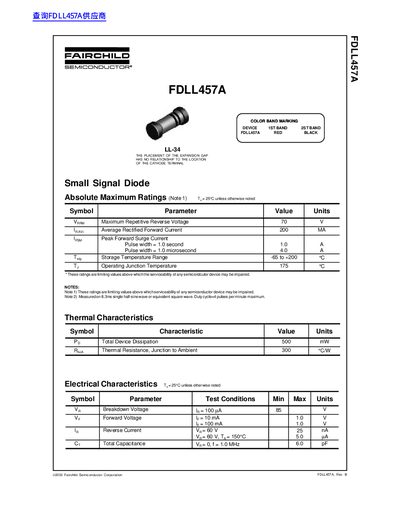

The document is a technical specification sheet for the Fairchild Semiconductor FDLL457A device. It identifies the component as a Small Signal Diode with color band markings of Red and Black.
Key parameters include an average rectified forward current of 200 mA, a maximum repetitive reverse voltage of 70 V, and a total capacitance of 6.0 pF. The datasheet also lists breakdown voltage, forward voltage drops at various currents, and operating temperature ranges.
| Maximum Repetitive Reverse Voltage | 70 V |
|---|---|
| Average Rectified Forward Current | 200 mA |
| Peak Forward Surge Current (1.0s) | 1.0 A |
| Peak Forward Surge Current (1.0us) | 4.0 A |
| Breakdown Voltage | 85 V |
| Forward Voltage (IF=10mA) | 1.0 V |
| Total Capacitance | 6.0 pF |
The first band is Red and the second band is Black.
No, Fairchild's products are not authorized for such use without express written approval.
