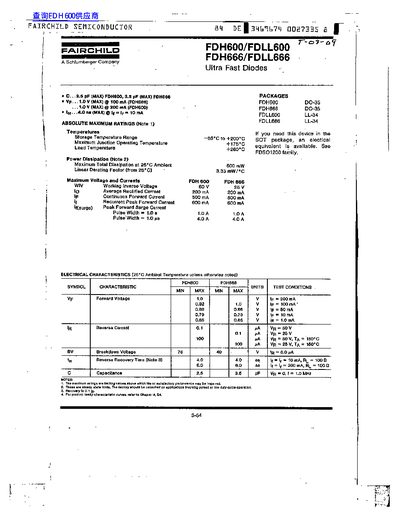

This document is a technical datasheet for the Fairchild Semiconductor Ultra Fast Diode family, specifically models FDH600, FDLL600, FDH666, and FDLL666. It provides detailed specifications for these components available in DO-35 and LL-34 packages.
The document outlines absolute maximum ratings such as storage temperature range from -65°C to +200°C and maximum junction operating temperatures. It also lists electrical characteristics including forward voltage, reverse current, breakdown voltage, and reverse recovery time under specific test conditions.
| Storage Temperature Range | -65°C to +200°C |
|---|---|
| Maximum Junction Operating Temperature | +150°C (implied by context of derating) |
| Capacitance (FDH600) | 25 pF |
The storage temperature range is from -65°C to +200°C.
The test condition for forward voltage is a current (Ip) of 200 mA.
