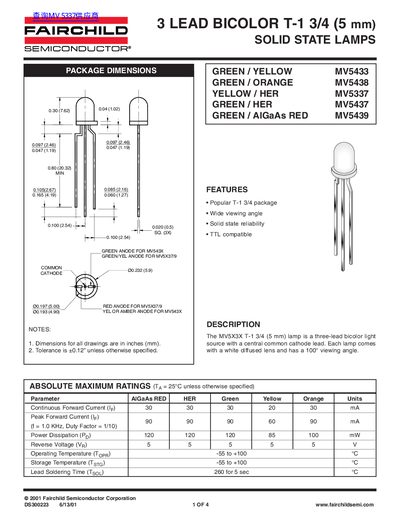

Datasheet for Fairchild Semiconductor MV5X3X 3‑lead bicolor T‑1 3/4 (5 mm) solid‑state lamps, detailing electrical, optical and mechanical specifications.
The MV5X3X series are three‑lead bicolor solid‑state lamps with a common‑cathode configuration and a 100° viewing angle. Each device is packaged in a T‑1 3/4 (5 mm) case and is TTL compatible, making it suitable for a variety of indicator applications.
The datasheet provides absolute maximum ratings, typical performance curves, and detailed electrical and optical characteristics such as forward current, forward voltage, luminous intensity, and peak wavelength for each color option.
| Operating Temperature (TOPR) | -55 to +100 °C |
|---|---|
| Viewing Angle | 100° |
The lamp has a 100° viewing angle.
The device operates from –55 °C to +100 °C.
