The document describes the features of the FDLL485B model, including high forward conductance, fast switching speed, and high blocking voltage.

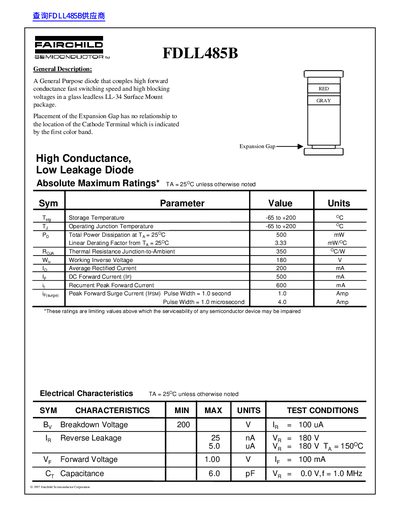

This document describes the Fairchild FDLL485B, a general-purpose diode designed to couple high forward conductance with fast switching speed and high blocking voltages. It is packaged in a glass leadless LL-34 Surface Mount configuration.
The datasheet provides absolute maximum ratings, electrical characteristics, and physical dimensions for the device. Key specifications include a working inverse voltage of 180 V, an average rectified current of 200 mA, and a forward voltage drop of 1.00 V at 100 mA.
| Working Inverse Voltage | 180 V |
|---|---|
| DC Forward Current (IF) | 500 mA |
| Recurrent Peak Forward Current | 600 mA |
| Peak Forward Surge Current (1.0s) | 1.0 Amp |
| Breakdown Voltage | 200 V |
| Forward Voltage (100mA) | 1.00 V |
| Capacitance | 6.0 pF |
The working inverse voltage is rated at 180 V.
