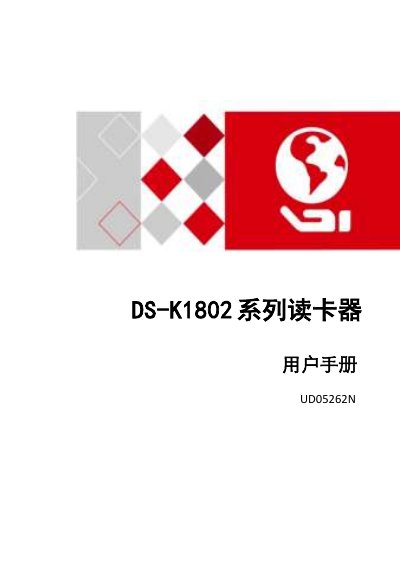

This manual provides installation, wiring, and testing instructions for the DS DS-K1802 Series card readers, covering both ID and Mifare card models.
The DS-K1802 Series card readers serve as key signal input devices for access control systems, supporting various card types including Mifare and ID cards. The series includes models DS-K1802EK/MK for Mifare cards and DS-K1802E/M for ID cards, featuring a built-in buzzer for status indication and a watchdog function for self-diagnostics. This manual is written in Chinese.
| Operating Voltage | DC 12V |
|---|---|
| Read Frequency (Mifare) | 13.56MHz |
| Read Frequency (ID) | 125kHz |
| Read Distance | ≥5cm |
| Operating Temperature | -20℃～65℃ |
| Dimensions | 115.9×43.3×17mm |
| Waterproof Rating | IP65 |
The DS-K1802EK/MK models support Mifare cards, while the DS-K1802E/EK models support ID cards.
A successful read is indicated by two rapid 'beep' sounds and a green LED status light.
