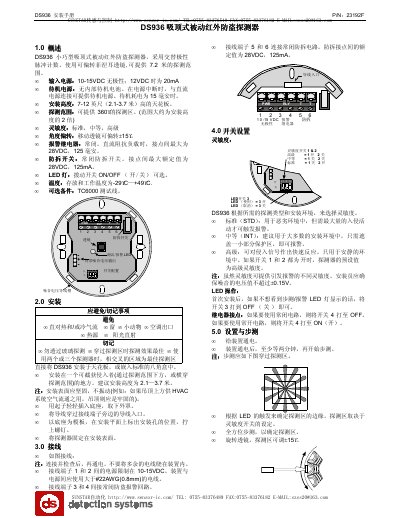

The SUNSTAR DS936 is a compact ceiling‑mounted passive infrared anti‑theft detector; this guide provides installation, wiring, switch settings and testing…
The DS936 is a small ceiling‑mounted passive infrared anti‑theft detector that uses alternating‑polarity pulse counting and a steerable Fresnel lens to provide a 7.2 m detection range with 360° coverage. It operates from 10‑15 VDC (unipolar) or 12 VDC at 20 mA, has three sensitivity settings, and includes optional LED and tamper switch functions.
This installation guide covers the recommended mounting height, step‑by‑step mechanical installation, wiring diagrams, switch configuration for sensitivity, alarm relay and tamper contacts, final testing procedures, and routine maintenance recommendations. This manual is written in Chinese.
| Input voltage | 10‑15 VDC (unipolar) or 12 VDC at 20 mA |
|---|---|
| Standby power consumption | 15 mA |
| Mounting height | 7‑12 ft (2.1‑3.7 m) |
| Detection range | 7.2 m (360° coverage) |
| Sensitivity settings | Standard, Intermediate, Advanced |
| Lens deflection angle | ±15° |
| Alarm relay contact rating | 28 VDC, 125 mA (normally closed) |
| Tamper switch contact rating | 28 VDC, 125 mA (normally closed) |
| Operating temperature range | -29 °C to +49 °C |
| Optional accessory | TC6000 test lead |
It operates from 10‑15 VDC (unipolar) or 12 VDC at a current of 20 mA.
The detector provides a detection range of about 7.2 m with 360° coverage.
The device offers three sensitivity levels: Standard, Intermediate, and Advanced, selectable via the switches.
The standby current is 15 mA with no internal battery.
