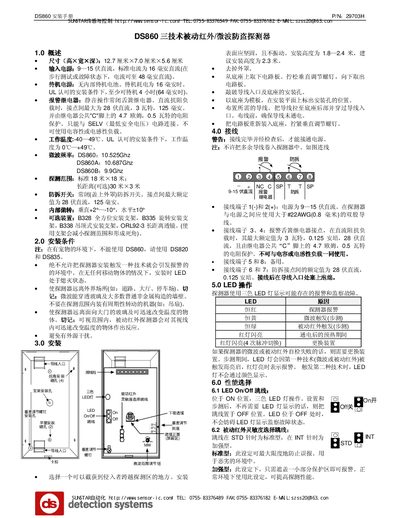

The Sunstar DS860 installation guide provides specifications, wiring instructions, LED operation, performance settings, maintenance tips, and detection…
The DS860 is a passive infrared and microwave security detector designed for intrusion detection. It operates on 9‑15 V DC and includes an alarm relay, anti‑tamper switch, and three‑color LED status indicator.
The guide covers product specifications, installation conditions, step‑by‑step mounting, wiring diagrams, LED operation, performance selection, walk‑test setup, monitoring functions, routine maintenance, and how to adjust detection range for standard and long‑distance configurations. This manual is written in Chinese.
| Input Power | 9–15 V DC, 16 mA (up to 48 mA during walk test/fault) |
|---|---|
| Standby Power | 16 mA, ≥4 h standby (64 mAh) |
| Operating Temperature | -40 °C to 49 °C (UL‑approved: 0 °C to +49 °C) |
| Microwave Frequency | DS860: 10.525 GHz, DS860A: 10.687 GHz, DS860B: 9.9 GHz |
| Detection Range | Standard 18 m × 18 m; optional long‑distance 30 m × 3 m |
| Internal Tilt Adjustment | Vertical +2° to –10°, Horizontal ±10° |
It requires 9–15 V DC with a standard current of 16 mA, which can rise to 48 mA during a walk test or fault condition.
The detector operates from –40 °C to 49 °C, and under UL‑approved conditions from 0 °C to +49 °C.
No. The guide states that the DS860 must not be used where pets are present; instead, use the DS820 or DS835 models.
