The LD-LT series thin type load cells are characterized by high accuracy, high stability and are widely used in industry, mechanical equipment, actuators, weighing systems, water tanks, etc.

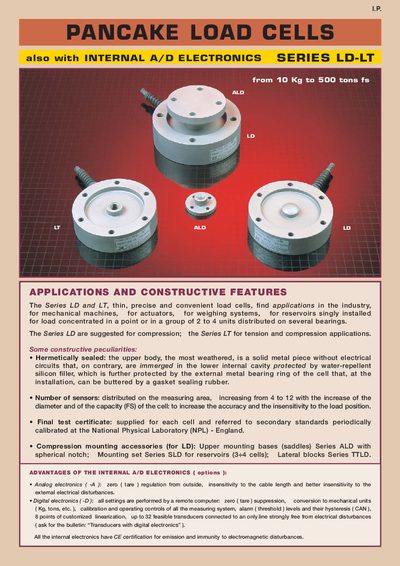

This document provides technical data for the DS Europe LD and LT series of thin, precise load cells. The LD models are designed for compression applications, while the LT models are suitable for both tension and compression. These cells are hermetically sealed and feature sensors distributed across the measuring area to ensure accuracy and insensitivity to load position. They are intended for use in mechanical machines, actuators, and weighing systems.
| Sensitivity | 2 mV/V FS, typical |
|---|---|
| Total error | < +0,2 % FS, typical |
| Creep | < +0,1 % FS |
| Zero output return | < + 0,07 % FS |
| Overload | + 50 % FS |
| Ultimate load limit | about 2 times FS |
| Insulating resistance | > 5000 Mohms |
They find applications in the industry for mechanical machines, actuators, weighing systems, and reservoirs.
The Series LD is suggested for compression, while the Series LT is suggested for tension and compression applications.
The typical total error is less than +0.2% of Full Scale (FS).
