DS8000C is a high-quality digital copier that can be upgraded to a high-quality digital copier by connecting to an existing laser printer. The product has copy function, automatic paper feed function, simple operation panel and LCD display screen.

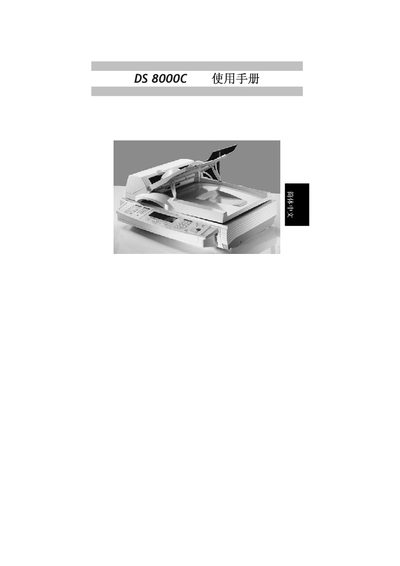

This manual introduces the DS8000C, a digital document feeder that connects to printers via RJ‑45 or IEEE‑1284 interfaces. It describes key features such as an LCD display, auto‑document feeder (ADF) capable of handling up to 50 sheets, and support for various paper sizes.
Installation instructions cover proper placement, power requirements (24 V DC, 2 A), and connection to a printer. The guide also includes detailed specifications, troubleshooting tips, and an index for quick reference. This manual is written in Japanese.
| Interface (RJ‑45) | RJ‑45 (printer profile update) |
|---|---|
| Interface (IEEE‑1284) | IEEE‑1284 (printer connection) |
| CPU | 32‑bit RISC |
| Memory | DRAM 16 MB |
| Dimensions (main unit) | 589 × 428 × 140 mm |
| Weight (main unit) | 8 kg |
| Power Supply | 24 V DC, 2 A |
| Power Consumption | <30 W (normal), 18 W (eco mode) |
| ADF Paper Size | 6 × 7" to 8.5" × 14" (A3) |
| ADF Paper Weight | 16‑28 lb (60‑105 g/m²) |
| Resolution | 600 dpi |
| Maximum Automatic Feed | Up to 50 sheets |
It requires a 24 V DC power supply rated at 2 A.
The ADF accepts paper from 6 × 7 inches up to 8.5 × 14 inches (A3).
The device can automatically feed up to 50 pages.
