dslab is a multi-channel data acquisition system including transducers that measure (forces, displacements, temperatures, etc.) and transmitting analog signals to the SAP digitizing electronics that retransmits, the measured values, by means of CAN Open, to a CAN/USB converter connected to the computer USB, where DSLab software is installed. dslab data acquisition software shows, at the same time, all wave forms of each input channel on the computer screen where it is possible a data analysis, to save data on hard disk and to print graphs.

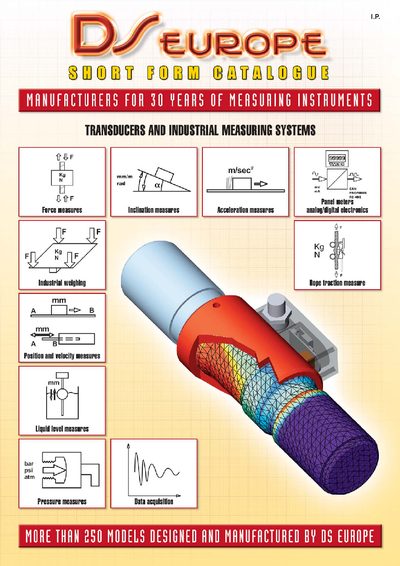

DS Europe, with 30 years of experience in measuring instruments, offers a broad portfolio of transducers, load cells and industrial measuring systems. This catalog presents the technical data, output options and typical applications for each product series.
The document covers load‑cell series (500 QD, LD‑LT, column, beam, off‑centre, pin, washer), panel meters (PITAGORA, AN401PLUS), digital converters, pressure transducers, liquid‑level systems and the DSLab data‑acquisition platform, highlighting key specifications such as resolution, sampling rate and environmental protection.
| Analog input resolution | 24‑bit max A/D converter |
|---|---|
| Maximum sampling rate per channel | up to 1 kHz |
| Non‑linearity of 514QD load cell | < 0.023 % FS |
| IP rating of column load cells | IP65 |
| Output options for column load cells | 2 mV/V, 5 V, 10 V, 4‑20 mA |
The DSLab system can sample up to 1 kHz per channel.
Column load cells provide 2 mV/V, 5 V, 10 V and 4‑20 mA outputs.
The 514QD load cell has a non‑linearity of less than 0.023 % of full scale.
Yes, they have an IP65 protection rating.
