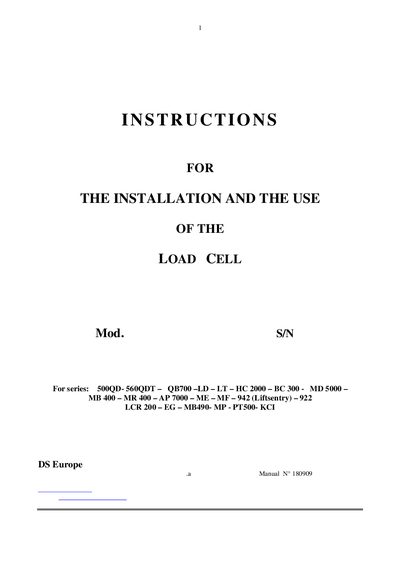

This document is about the installation and use of LOAD CELL Mod. S/N For series: 500QD- 560QDT – QB700 –LD – LT – HC 2000 – BC 300 - MD 5000 – MB 400 – MR 400 – AP 7000 – ME – MF – 942 (Liftsentry) – 922 LCR 200 – EG – MB490- MP - PT500- KCI DS Europe. The document includes cautions for installation and use, steps for mechanical installation and electrical connections, as well as tests for the application of the CE mark.
This manual provides detailed instructions for the mechanical installation, electrical connections, and safe use of DS Europe load cells. It includes guidelines for both amplified and non‑amplified devices, as well as digital load cells.
The document also covers troubleshooting, protection against electrical noise, environmental considerations, and warranty conditions, helping users ensure reliable performance and compliance with CE regulations.
| Rated Capacity (Full Scale) | Maximum weighing capacity, expressed in kilogram‑force (Kgf) |
|---|---|
| Sensitivity | Output voltage per volt of excitation at full scale, expressed in V/V FS |
The rated capacity, also called full scale, is the maximum weighing capacity of the cell and is expressed in kilogram‑force (Kgf).
Bake the cell in an oven at 85 °C for at least 10 days to remove conductive residues.
Yes, the cells comply with the EMC Directive and related standards listed in the EC Conformity Declaration.
