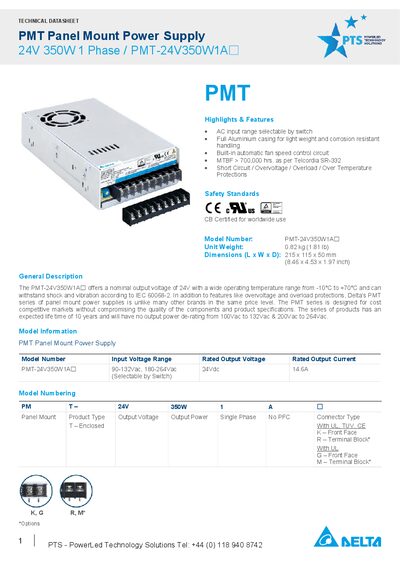

The Delta PMT-24V350W1A is a 24 V, 350 W single‑phase panel‑mount power supply with selectable input voltage, built‑in protections and compliance to…
The PMT‑24V350W1A panel‑mount power supply delivers a nominal 24 Vdc output at 14.6 A (350 W) and features selectable AC input ranges (90‑132 Vac or 180‑264 Vac). It includes automatic fan speed control, MTBF over 700,000 hours, and a full aluminium case for lightweight, corrosion‑resistant handling.
Installation guidelines specify side or base mounting on a grounded metal surface using M4 screws, with required safety clearances of at least 4 mm from other components and 20 mm from fan‑ventilated surfaces. Built‑in protections cover overvoltage, overload/overcurrent, over‑temperature and short‑circuit conditions, all with auto‑recovery (hiccup) mode.
| Input Voltage Range | 90‑132 Vac, 180‑264 Vac (selectable) |
|---|---|
| Nominal Output Voltage | 24 Vdc |
| Output Current | 14.6 A |
| Output Power | 350.4 W |
| Efficiency (100% load) | > 87 % @ 230 Vac |
| MTBF | > 700,000 hrs |
| Dimensions (L×W×D) | 215 × 115 × 50 mm |
| Unit Weight | 0.82 kg (1.81 lb) |
| Operating Temperature Range | -10 °C to +70 °C |
It accepts 90‑132 Vac or 180‑264 Vac, selectable by a switch on the unit.
The device is rated for a mean time between failures of greater than 700,000 hours.
