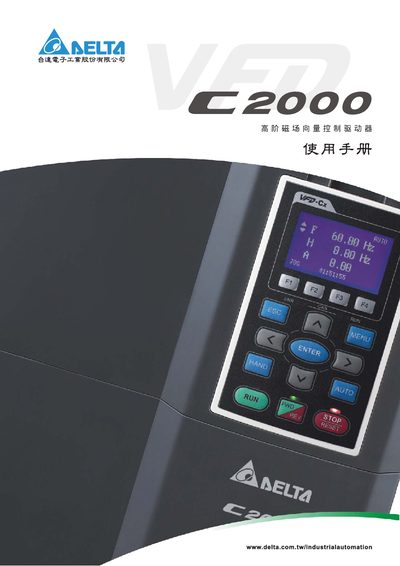

The Delta VFD007C43A AC motor drive user manual provides safety instructions, wiring guidance, specifications, and configuration details.
This manual covers safe installation and operation of the Delta VFD007C43A variable‑frequency drive. It includes safety warnings, handling and storage procedures, and step‑by‑step wiring instructions for both the main and control circuits.
The document also lists technical specifications, parameter tables, warning and fault codes, and provides guidance for CANopen and PLC applications, helping users configure and troubleshoot the drive in industrial environments. This manual is written in Chinese.
| Input Voltage (Normal Duty) | 3‑phase 380‑480 V 50/60 Hz |
|---|---|
| Input Current (Normal Duty) | 4.3 A |
| Output Voltage (Normal Duty) | 3‑phase 380‑480 V |
| Output Current (Normal Duty) | 3 A |
| Maximum Output Frequency (Normal Duty) | 0‑600 Hz |
| Recommended Main‑circuit Wire Gauge | 14 AWG (2.1 mm²) |
| Power Rating | 1 HP (0.75 kW) |
The power must be turned off and the POWER indicator must be extinguished before any wiring or installation work.
A 14 AWG (2.1 mm²) copper wire is recommended.
The drive accepts a three‑phase input of 380 V to 480 V at 50 Hz or 60 Hz.
