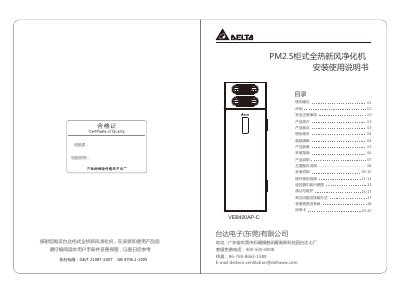

This manual provides installation, operation, maintenance instructions and specifications for the Delta VEB400AP-C cabinet full‑heat fresh‑air purifier.
The Delta VEB400AP-C cabinet full‑heat fresh‑air purifier supplies continuously filtered outdoor air to indoor spaces while recovering temperature and humidity energy, reducing heat loss and noise. It features PM2.5 filtration, laser dust sensing, low‑noise operation, and optional Wi‑Fi control.
The user manual covers safety precautions, product overview, technical specifications, installation options (side or back mounting), operation of the LCD panel and remote control, filter replacement, cleaning, troubleshooting, and warranty information. This manual is written in Chinese.
| Dimensions (W×D×H) | 480 mm × 438 mm × 1495 mm |
|---|---|
| Weight | 60.7 kg |
| Input Voltage | 220 V / 50 Hz |
| Rated Power | 130 W |
| Airflow (Fresh Air) | 400 m³/h |
| Noise Level | ≤49 dB(A) |
| Filter Level | H11 |
| Energy Exchange Rate | 50 %–65 % |
| PM2.5 Detection | Supported |
When the filter reaches its maintenance cycle the LCD shows “0” and the “replace filter” icon flashes, indicating that the filter should be changed.
Make sure the power plug is fully inserted and the connection is solid; re‑insert the plug if necessary.
Yes, the side‑mount method allows the air‑duct to be exposed; the manual provides drilling dimensions (127–132 mm) and steps for securing the unit.
Wi‑Fi control is optional; the unit can be operated via the infrared remote or touch panel without Wi‑Fi.
