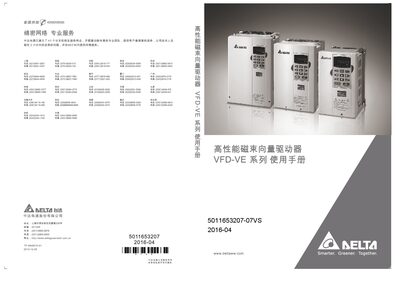

The Delta VFD-VE series AC motor drive user manual provides installation, wiring, operation, parameter settings, and troubleshooting instructions.
This manual covers the complete installation process for the Delta VFD-VE AC motor drives, including safety precautions, mounting, and environmental requirements. Detailed wiring diagrams and terminal specifications are provided for both power and control circuits.
The guide also explains the operation panel, parameter configuration, fault diagnosis, and regular maintenance procedures. Appendices contain accessory selection, motor sizing, and revision history. This manual is written in Chinese.
| Power rating | 5 HP (3.7 kW) |
|---|---|
| Input voltage range | 200‑240 V AC, 50/60 Hz |
| Recommended main‑circuit wire gauge | 14‑10 AWG (2.1‑5.3 mm²) |
Use 14‑10 AWG (2.1‑5.3 mm²) wire with a tightening torque of 18 kgf·cm.
The model number is printed on the nameplate, for example "MODEL: VFD037V23A-2".
