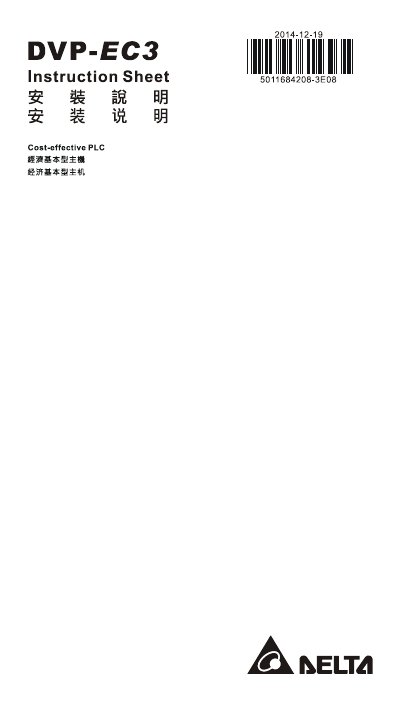

The Delta DVP-EC3 series PLC user manual provides installation, wiring, safety, and electrical specifications for models with 10‑60 I/O points.
This manual explains how to install the Delta DVP-EC3 programmable logic controller in a protected enclosure, including mounting options, wiring guidelines, and safety precautions. It also describes the required torque for terminal screws and grounding requirements to ensure reliable operation.
Detailed electrical specifications are listed, covering power supply voltage, consumption, input/output frequencies, and voltage limits for each I/O point. The document includes wiring diagrams for relay and transistor output circuits, as well as guidance on emergency stop and protection circuits.
| Power supply voltage | 100 ~ 240VAC |
|---|---|
| Power consumption | up to 22.5VA |
| Input frequency | 20 kHz (X0‑X3) |
| Output frequency | 10 kHz (Y0‑Y3) |
| Output voltage rating | < 240VAC, 30VDC |
| Ground wire diameter | not less than L, N terminals |
| Terminal screw torque | 3.80 kg‑cm (3.30 in‑lb) |
The terminal screws should be tightened to 3.80 kg‑cm (3.30 in‑lb).
The PLC operates on an AC supply of 100 ~ 240 VAC, 50/60 Hz.
The series provides between 10 and 60 I/O points depending on the model.
