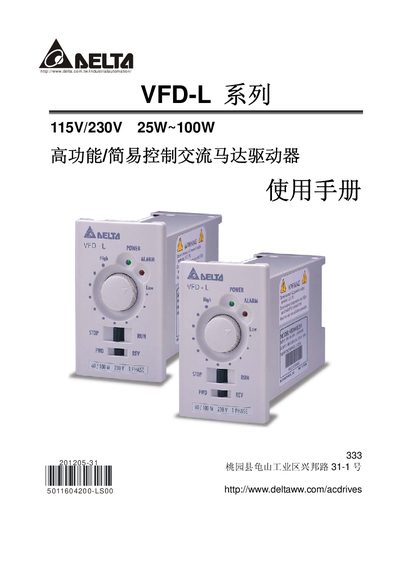

The Delta VFD‑L series AC motor drive user manual provides installation, wiring, parameter settings, troubleshooting and maintenance instructions for…
This manual covers all aspects of the Delta VFD‑L series variable‑frequency drives, including delivery inspection, name‑plate information, storage, installation, basic wiring, communication setup, and safety precautions. It is intended for users and service technicians who need to install, configure, and maintain the drives safely and reliably.
Key sections describe the three control modes (communication, panel, external terminal), DIP‑switch configuration, parameter tables, error‑message indications, and recommended maintenance procedures. Technical specifications, mechanical dimensions, and wiring diagrams are provided to aid proper integration into motor‑control systems. This manual is written in Chinese.
| Input voltage | 115 V / 230 V |
|---|---|
| Rated output power | 25 W‑40 W / 60 W‑100 W |
| Rated output current | 0.28 A / 0.40 A (115 V) 0.56 A / 0.80 A (230 V) |
| Maximum output voltage | 2 × input voltage |
| Rated frequency range | 1.00 Hz – 120.00 Hz |
| Control system | SVPWM, carrier frequency 10 kHz |
| Storage temperature | -20 °C to 60 °C |
| Vibration limit (low frequency) | ≤9.81 m/s² (1 g) for <20 Hz |
All power connections must be removed, and after the panel indicator light goes out you must wait at least one minute for the capacitor to discharge before servicing.
