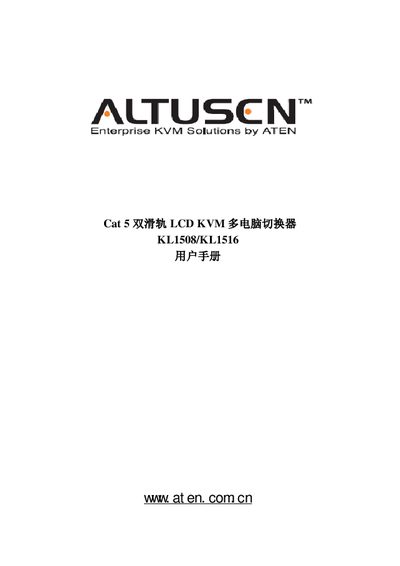

This user manual provides installation, configuration, operation, and firmware update instructions for the ATEN KL1508/KL1516 Cat 5 dual-track LCD KVM…
The document serves as a comprehensive guide for the ATEN KL1508 (8-port) and KL1516 (16-port) Cat 5 Dual-Track LCD KVM Switchers. It covers hardware installation, including rack mounting and菊花 chain daisy-chaining configurations.
The manual details basic operations such as opening/closing control ends, port selection via OSD or hotkeys, and keyboard emulation for Mac and Sun systems. It also includes procedures for firmware updates using the provided tool and cable. This manual is written in Chinese.
| Host Connections (KL1508) | Up to 504 (via 16-level daisy chain) |
|---|---|
| Keyboard Interface | 1 x 6-pin Mini-DIN female (purple) |
| Monitor Interface | 1 x HDB-15 female (blue) |
| KVM Ports | 8 or 16 x RJ-45 female (black) |
| LCD Panel Size | 17 inch or 19 inch |
The package includes one KL1508 or KL1516 switcher, a standard rack mounting kit, a firmware update cable, a power cord, this user manual, and a quick installation card.
You must register your product on the ATEN Online Support Center at http://support.aten.com for international users or http://www.aten-usa.com/product_registration for North American users.
ATEN guarantees that materials and workmanship will be free of defects for one year from the date of purchase.
