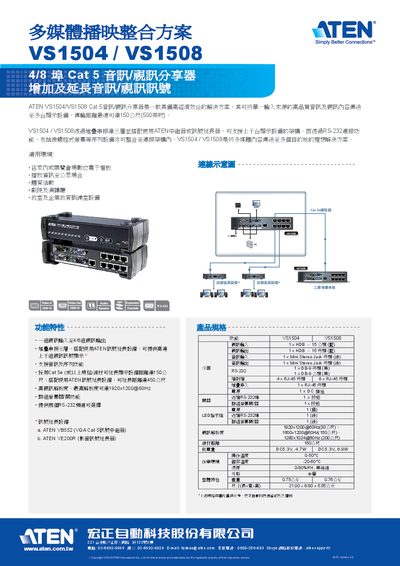

The ATEN VS1504/VS1508 Audio/Video Splitter solution manual describes features, specifications, and connection options for distributing high‑quality AV…
The VS1504/VS1508 series provides a cost‑effective solution for sending a single high‑quality audio and video source to multiple displays up to 150 m (500 ft) away. It supports three‑layer stacking with ATEN repeaters or signal extenders, making it suitable for stores, exhibition halls, sports venues, theaters, classrooms, and corporate training rooms.
Key features include one HDMI‑type video input and up to eight video outputs, audio I/O, two RS‑232 ports, and Cat‑5e based transmission. The device supports resolutions up to 1920 × 1200 @ 60 Hz, offers group screen on/off control, and can be powered by a 5.3 V DC supply with low power consumption. Physical specs: metal housing, weight ~0.75 kg, dimensions 21 × 8.8 × 5.55 cm. This manual is written in Chinese.
| Video Input | 1 x HDB‑15 male (blue) |
|---|---|
| Video Output | 1 x HDB‑15 female (blue) |
| Audio Input | 1 x Mini Stereo Jack female (green) |
| Audio Output | 1 x Mini Stereo Jack female (green) |
| RS‑232 Ports | 1 x DB‑9 female (black) and 1 x DB‑9 male (black) |
| RJ‑45 Ports | 4 x RJ‑45 female, 8 x RJ‑45 female (stackable) |
| Supported Video Resolution | Up to 1920 × 1200 @ 60 Hz |
| Stacking Capability | Three‑layer stacking supported |
| Power Consumption | DC 5.3 V, 4.7 W (VS1504) / 6.9 W (VS1508) |
| Operating Temperature | 0 °C – 50 °C |
| Storage Temperature | -20 °C – 60 °C |
| Humidity | 0 % – 80 % RH, non‑condensing |
| Weight | 0.75 kg (VS1504) / 0.76 kg (VS1508) |
| Dimensions | 21.00 × 8.80 × 5.55 cm (L × W × H) |
The VS1508 model provides eight video outputs via RJ‑45 ports.
Yes, the units support three‑layer stacking and can be combined with ATEN repeaters or signal extenders for large‑scale deployments.
It supports video resolutions up to 1920 × 1200 @ 60 Hz.
