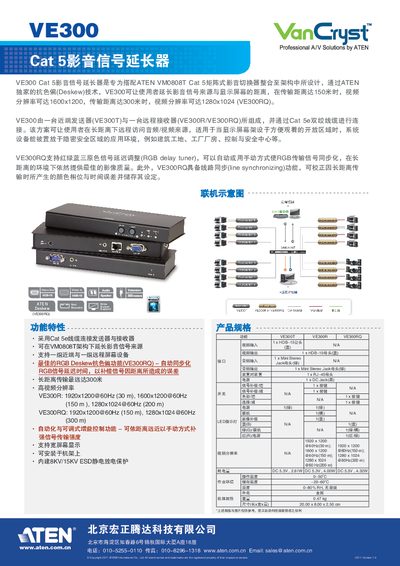

The VE300 Cat 5 Audio/Video Extender is designed to integrate with the ATEN VM0808T Cat 5 Matrix Switch to extend audio and video signals from the source to the display screen. With ATEN's exclusive Deskew technology, the VE300 allows users to extend the distance between the audio/video source and the display screen. The video resolution can reach 1600x1200 at a transmission distance of 150 meters and 1280x1024 at a transmission distance of 300 meters (VE300RQ). The VE300RQ supports RGB delay adjustment, which can automatically or manually synchronize the RGB transmission signal to provide optimal image quality in long-distance environments.
The VE300 is a Cat 5e‑based video signal extender designed to work with ATEN VM0808T matrix switchers. It consists of a near‑end transmitter (VE300T) and a remote receiver (VE300R or VE300RQ) that transmit audio/video over long distances using standard Cat 5e twisted‑pair cable.
Key features include ATEN’s Deskew technology for color‑phase correction, RGB delay adjustment, and line synchronizing to maintain image quality over distances up to 300 m. The unit operates from a 5.3 V DC supply, consumes about 4 W, and is rated for temperatures from –20 °C to 60 °C, with dimensions of 20 × 8 × 2.5 cm and a weight of 0.47 kg. This manual is written in Chinese.
| Maximum video resolution at 150 m | 1600 × 1200 |
|---|---|
| Maximum video resolution at 300 m (VE300RQ) | 1280 × 1024 |
| Operating temperature range | -20 °C to 60 °C |
| Dimensions (L×W×H) | 20.00 × 8.00 × 2.50 cm |
| Weight | 0.47 kg |
| Cable type | Cat 5e twisted‑pair |
| Configuration | One transmitter (VE300T) and one receiver (VE300R/VE300RQ) |
It can deliver up to 1600 × 1200 resolution at 150 m.
A standard Cat 5e twisted‑pair cable is used.
The device is rated for –20 °C to 60 °C.
