CE790 is an IP-Based KVM signal extender with features like Auto-MDIX and RS-232 serial port. It allows access to computer systems through Intranet. It supports dual control, OSD menu, and does not require software installation. It also offers high video resolution and audio support.
The CE790 is an IP‑based digital KVM signal extender that supports Auto‑MDIX, RS‑232 serial ports, and USB control for up to multiple points (point‑to‑point, point‑to‑multi, multi‑to‑multi). It allows remote access to USB devices, monitors, and keyboards over a LAN using Cat‑5e cable.

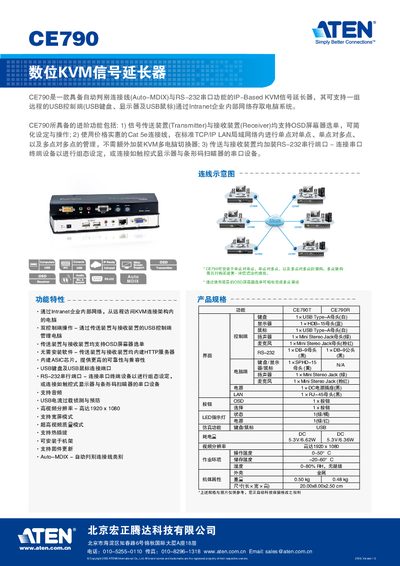

The manual lists the hardware interfaces (USB Type‑A, HDB‑15, Mini‑Stereo Jack, RJ‑45), power requirements, environmental limits, physical dimensions, and video resolution (1920 × 1080). It also describes the built‑in HTTP configuration software and firmware update procedure. This manual is written in Chinese.
| USB Type‑A ports | 1 female (white) |
|---|---|
| Video output resolution | 1920 × 1080 |
| Operating temperature | 0‑50 °C |
| Storage temperature | -20‑60 °C |
| Relative humidity | 0‑80 % RH |
| Power consumption | 5.3 V / 6.62 W (or 5.3 V / 6.36 W) |
| Weight | 0.48 kg – 0.50 kg |
| Dimensions (W × D × H) | 20.00 × 8.00 × 2.50 cm |
It supports a maximum video resolution of 1920 × 1080.
The device includes one USB Type‑A female port.
The CE790 operates between 0 °C and 50 °C.
Yes, the CE790 includes Auto‑MDIX for automatic crossover detection.
