KN2116A is the next generation KVM Over the NET™ remote computer management solution that enables local and remote IT managers to monitor and access an entire enterprise data center infrastructure via a web browser. The innovative message board feature - similar to a chat session - enables multiple remote users to exchange messages and collaborate, or jointly manage an entire system architecture. Through the advanced Panel Array Mode, administrators can monitor up to 16 servers at once. Other powerful features include Mouse DynaSync technology and computer module ID.
The ATEN KN2116A is a next‑generation KVM‑over‑IP solution that lets administrators access and control up to 16 servers from a single console over a network. It supports high‑density connections with 16 RJ45 ports for Cat5e/6 cabling and offers both local and remote management functions, including mouse synchronization and multi‑user sessions.

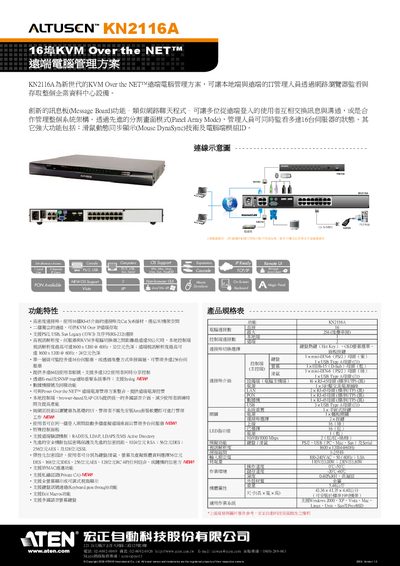

The device provides a maximum video resolution of 1600 × 1200 @ 60 Hz with up to 32‑bit color depth, supports PS/2, USB, Sun Legacy (13W3) and RS‑232 interfaces, and includes advanced security features such as 1024‑bit RSA, 256‑bit AES encryption, and authentication via RADIUS, LDAP, TACACS+ and Microsoft Active Directory. Power options include 100‑240 VAC input and optional Power‑over‑Ethernet. This manual is written in Chinese.
| Maximum video resolution | 1600 x 1200 @ 60 Hz, up to 32‑bit color depth |
|---|---|
| Supported input interfaces | PS/2, USB, Sun Legacy (13W3), RS‑232 |
| Power input | 100‑240 VAC, 50/60 Hz, 10 A |
| Encryption algorithms | 1024‑bit RSA, 256‑bit AES |
| Network ports | 16 RJ45 (Cat5e/6) |
The device supports a maximum resolution of 1600 × 1200 @ 60 Hz with up to 32‑bit color depth.
Yes, it includes optional Power‑over‑Ethernet capability.
It supports RADIUS, LDAP, TACACS+ and Microsoft Active Directory authentication.
