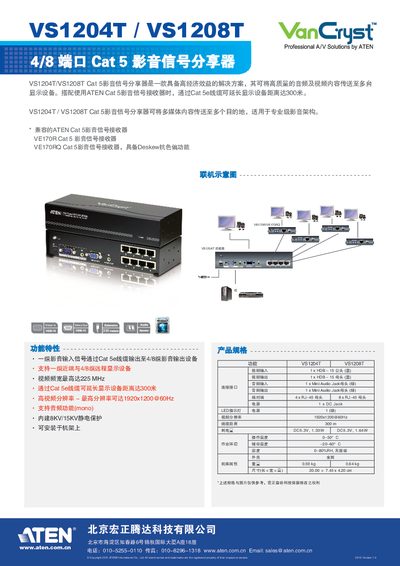

The ATEN VS1204T/VS1208T Cat5 video signal splitter shares high‑quality audio and video to up to 4 or 8 displays over 300 m of Cat 5e cable.
The VS1204T/VS1208T Cat5 video signal splitter provides a cost‑effective solution for distributing high‑quality audio and video to multiple displays. It supports one set of input signals and can output to 4 (VS1204T) or 8 (VS1208T) remote display devices via Cat 5e cable, with up to 300 m cable length.
Key specifications include video input/output via HDB‑15 connectors, mono audio via Mini‑Jack, RJ‑45 ports for video distribution, DC5.3 V power consumption, and support for resolutions up to 1920×1200@60 Hz. The unit is housed in a metal enclosure, weighs under 0.65 kg, and can be rack‑mounted. This manual is written in Chinese.
| Video Input | 1 x HDB‑15 male (blue) |
|---|---|
| Video Output | 1 x HDB‑15 female (blue) |
| Audio Input | 1 x Mini Audio Jack female (green) |
| Audio Output | 1 x Mini Audio Jack female (green) |
| RJ‑45 Ports (VS1204T) | 4 x RJ‑45 female |
| RJ‑45 Ports (VS1208T) | 8 x RJ‑45 female |
| Power Consumption (VS1204T) | DC5.3 V, 1.33 W |
| Power Consumption (VS1208T) | DC5.3 V, 1.64 W |
| Maximum Video Resolution | 1920×1200 @ 60 Hz |
| Maximum Cable Distance | 300 m |
| Operating Temperature | 0‑50 °C |
| Dimensions | 20.00 × 7.45 × 4.20 cm |
The splitter can transmit video up to 300 m using Cat 5e cable.
It supports video resolutions up to 1920×1200 at 60 Hz.
The VS1208T provides eight RJ‑45 video output ports.
The VS1204T consumes DC5.3 V at 1.33 W.
