CS1762A/CS1764A is a USB DVI KVMP multi-computer switch from ATEN. It supports 2 (CS1762A) or 4 (CS1764A) DVI computers and 2 USB 2.0 interface devices. It has a built-in 2-port USB 2.0 Hub. It is fully compatible with USB 2.0 specifications. It supports audio, wide screen resolution, high video resolution, support for independent switching of computers, USB interface devices, and audio functions. It supports DVI-Digital and DVI-Analog screens. It is fully compatible with DVI specifications. It is compatible with HDCP. It supports zero boot errors. It supports different keyboard languages. It supports firmware updates.
The CS1762A (2‑port) and CS1764A (4‑port) USB KVM switches combine a 2‑port USB 2.0 hub with DVI video connections, allowing a single keyboard, mouse and monitor to control multiple computers. ATEN’s Video Dynasync™ technology keeps screen resolution optimal when switching, and power‑on detection automatically switches to a powered‑on computer.

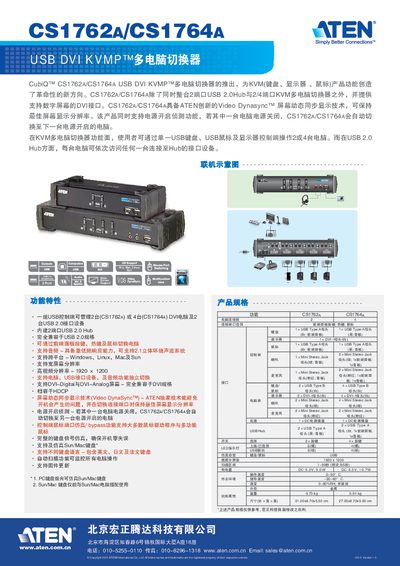

The devices support audio (2.1 stereo), cross‑platform operation (Windows, Linux, Mac, Sun), and multiple keyboard languages (English, Japanese, French). Physical specifications include compact dimensions, low power consumption, and built‑in LED indicators for status monitoring. This manual is written in Chinese.
| USB Hub Ports | 2 ports (USB 2.0) |
|---|---|
| KVM Ports | 2 ports (CS1762A) / 4 ports (CS1764A) |
| Audio Support | 2.1 stereo surround |
| Power Consumption | DC 5.3 V, 9.0 W (10.7 W max) |
| Weight | 0.73 kg (CS1762A) / 0.94 kg (CS1764A) |
| Dimensions (L×W×H) | 21.00×8.70×5.50 cm (CS1762A) / 27.00×8.70×5.50 cm (CS1764A) |
| Video Interface Compatibility | DVI‑Digital and DVI‑Analog (full DVI spec) |
| Cross‑Platform Compatibility | Windows, Linux, Mac, Sun |
| Keyboard Language Support | English, Japanese, French |
| Video Sync Technology | ATEN Video Dynasync™ |
The CS1762A can control 2 computers, while the CS1764A can control 4 computers.
It supports 2.1 stereo surround sound with low‑frequency response.
Both DVI‑Digital and DVI‑Analog interfaces are supported and fully compatible with the DVI specification.
