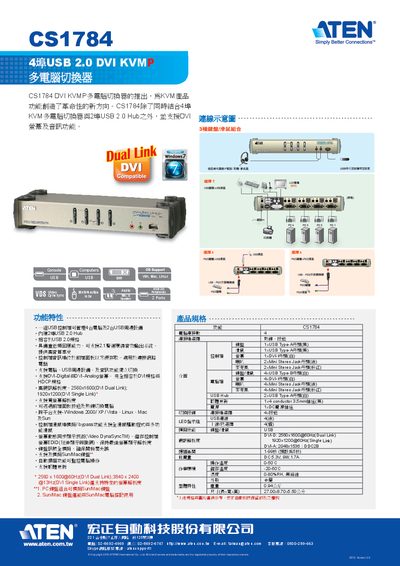

CS1784 4-Port USB 2.0 DVI KVMP Multi-Computer Switch is a product that integrates 4-Port KVM Multi-Computer Switch and 2-Port USB 2.0 Hub, supports DVI display and audio functions.
The CS1784 is a multi‑computer KVM switch that lets a user control up to four PCs with a single keyboard, video (DVI) and mouse. It includes an integrated 2‑port USB 2.0 hub and supports 2.1‑channel audio output, making it suitable for both workstation and server environments.
The device supports DVI resolutions up to 2560×1600 (Dual‑Link) and 1920×1200 (Single‑Link), works with Windows, Linux, and Mac OS, and operates from a 5.3 V DC power supply (9 W, 1.7 A). Physical dimensions are 27.0 × 8.7 × 5.5 cm and it can be stored at temperatures from –20 °C to 60 °C. This manual is written in Chinese.
| Supported computers | Up to 4 |
|---|---|
| USB 2.0 hub ports | 2 |
| Audio output | 2.1 channel |
| Maximum DVI Dual‑Link resolution | 2560×1600 |
| Maximum DVI Single‑Link resolution | 1920×1200 |
| Power input | 5.3 V DC, 9 W, 1.7 A |
| Storage temperature range | -20 °C to 60 °C |
| Dimensions | 27.0 × 8.7 × 5.5 cm |
The CS1784 can manage up to four computers simultaneously.
It supports a maximum DVI Dual‑Link resolution of 2560 × 1600 at 60 Hz.
Yes, it includes a 2.1‑channel audio output system.
