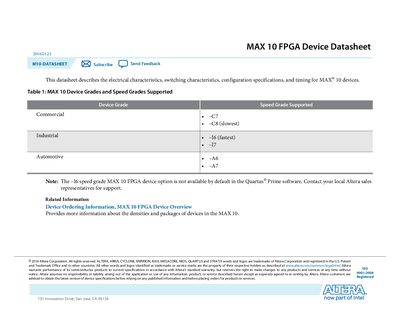

This datasheet details electrical, switching, and timing characteristics for Altera MAX 10 FPGA devices, covering operating conditions, power consumption…
This document provides comprehensive electrical and switching characteristics, configuration specifications, and timing information for the MAX 10 family of FPGA devices. It covers various device grades, including Commercial, Industrial, and Automotive, and details supported speed grades from –C7 to –A7.
The datasheet outlines absolute maximum ratings for single and dual supply devices, recommended operating conditions for power supplies, and programming/erasure specifications for user flash memory. It also includes data on I/O pin leakage currents, bus hold parameters, and on-chip termination (OCT) specifications with and without calibration.
| Maximum Supply Voltage (Single Supply) | 3.9 V |
|---|---|
| Maximum Supply Voltage (Dual Supply) | 1.63 V |
| I/O Pin Leakage Current Limit | 10 µA |
| OCT Calibration Accuracy | ±12 % |
The supported speed grades range from –C7 (slowest) to –A7 (fastest), depending on the device grade.
The maximum allowed overshoot voltage is 4.12 V, which allows for 100% of the high time duration.
