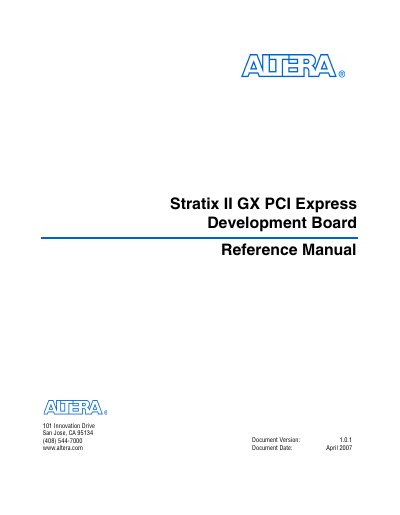

Altera Stratix II GX PCI Express Development Board Reference Manual is the reference manual for the Stratix II GX PCI Express Development Board.
The Stratix II GX PCI Express Development Board provides a hardware platform for developing high‑performance PCIe designs and demonstrates the Stratix II GX device’s embedded transceiver and memory circuitry. It includes up to 16 integrated transceiver channels, DDR2 SDRAM, QDRII SRAM, and a variety of high‑speed interfaces such as PCIe, Gigabit Ethernet, SFP modules, and high‑speed mezzanine connectors.
The board can be powered from the PCIe host (12 V and 3.3 V pins) or an external DC input jack (9 V‑20 V). Proper anti‑static handling is required to avoid damage, and the manual details power distribution, clock sources, and connector pin‑outs for successful integration.
| Memory Types | DDR2 SDRAM, QDRII SRAM |
|---|---|
| Gigabit Ethernet Interface | GigE PHY + RJ45 |
| External Power Input | 9 V‑20 V DC jack |
| Transceiver Channels | Up to 16 integrated channels |
It supports up to 16 integrated transceiver channels.
Anti‑static handling must be used to avoid damage to the board.
The board includes DDR2 SDRAM and QDRII SRAM memory interfaces.
