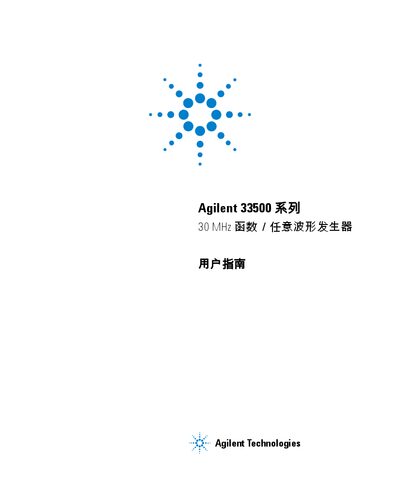

The Agilent 33500 series 30 MHz function/arbitrary waveform generator user guide provides setup, operation, safety, and interface instructions.
This guide covers the Agilent 33500 series 30 MHz function and arbitrary waveform generator, describing its front‑panel controls, menu structure, and available waveforms. It includes quick‑start steps, detailed feature explanations, and programming information for remote interfaces.
Safety precautions, grounding requirements, and environmental limits are detailed, along with technical specifications such as frequency range, sample rate, resolution, and supported interfaces. The manual also provides troubleshooting tips and calibration procedures. This manual is written in Chinese.
| Maximum Frequency | 30 MHz |
|---|---|
| Sample Rate | 250 MSa/s |
| Resolution | 16 bits |
| Standard Waveforms | 16 |
| Arbitrary Waveform Memory | 1 M points (optional 16 M points) |
| Interfaces | GPIB, USB, LAN |
| SCPI Compatibility | Yes |
| LXI Class C Compliance | Yes |
Connect the instrument to a protective earth ground, avoid explosive environments, and ensure all safety measures are observed before applying power.
Select the square‑wave function, press the Duty Cycle soft key, and adjust the value using the knob or numeric keypad as described in the quick‑start section.
