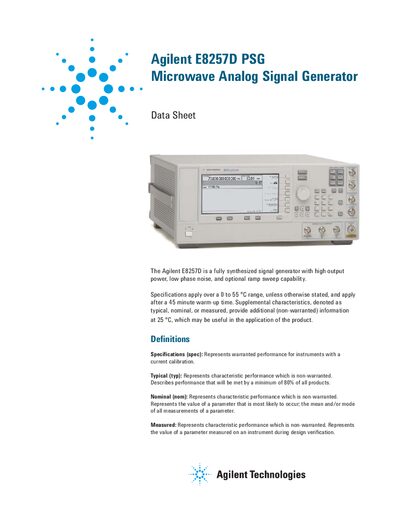

The Agilent E8257D PSG Microwave Analog Signal Generator data sheet provides specifications, operating modes, and performance details.
The E8257D is a fully synthesized microwave analog signal generator offering high output power, low phase noise, and optional ramp sweep capability. It operates over a wide frequency range and includes multiple sweep and modulation modes, remote programming, and a variety of options for enhanced performance.
The document lists detailed technical specifications such as frequency coverage, output power, spectral purity, phase‑noise performance, output impedance, and SWR. It also describes connector types, front‑ and rear‑panel interfaces, and available accessories and options.
| Frequency range | 250 kHz to 67 GHz (operational up to 70 GHz) |
|---|---|
| Output impedance | 50 Ω (nominal) |
It covers from 250 kHz up to 67 GHz, with operational capability up to 70 GHz.
The output impedance is 50 Ω nominal.
