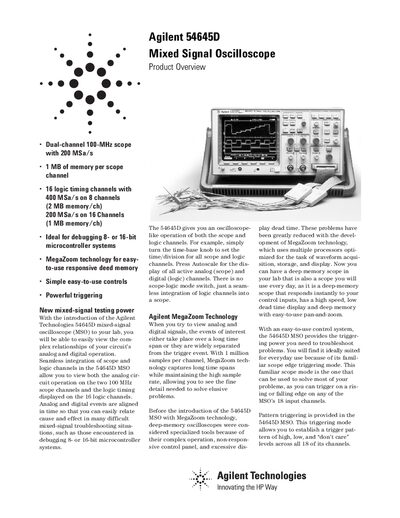

The Agilent 54645D mixed‑signal oscilloscope combines a dual‑channel 100‑MHz analog front‑end with 16 logic timing channels, offering deep memory and MegaZoom technology for seamless analog‑digital analysis. It provides up to 200 MSa/s per scope channel and 400 MSa/s on eight logic channels, with extensive triggering options such as glitch, pattern and TV modes.
Designed for rugged use, the instrument meets MIL‑T‑28800D requirements, includes a 7‑inch CRT display, and supports a range of interface modules and HP BenchLink Scope software for PC connectivity. Accessories and optional modules expand measurement capabilities.
| Analog bandwidth | 100 MHz |
|---|---|
| Scope sampling rate | 200 MSa/s per channel |
| Scope memory depth | 1 MB per channel |
| Logic channels | 16 |
| Logic sampling rate | 400 MSa/s on 8 channels (200 MSa/s on 16) |
| Vertical resolution (scope) | 8 bits |
| Horizontal resolution | 40 ps |
| Power usage | ≈90 W |
| Dimensions (W × H × D) | 35.258 × 17.272 × 31.75 mm |
| Weight | ≈6.35 kg |
Each scope channel can store up to 1 MB of samples.
The instrument includes 16 logic timing channels.
The analog bandwidth is 100 MHz (dc to 100 MHz).
Yes, it is built to MIL‑T‑28800D Type III, Class 3 specifications.
