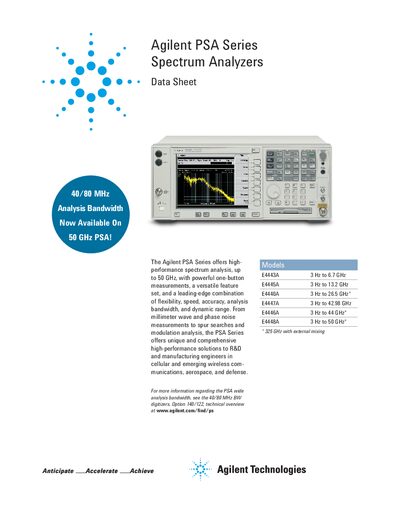

Technical data sheet for Agilent PSA Series spectrum analyzers covering frequency range, amplitude specs, and options.
The Agilent PSA Series spectrum analyzers provide high‑performance measurements up to 50 GHz with a variety of options for phase‑noise, modulation analysis, and spur searches. The data sheet lists detailed specifications for each model (E4443A, E4445A, E4440A, E4447A, E4446A, E4448A) and includes information on frequency range, amplitude range, resolution bandwidth, and warranty.
Key sections include definitions and conditions, frequency specifications, amplitude specifications, general specifications, input and output details, ordering information, and available options. The document also provides reference to the PSA Series Specification Guide for full technical details.
| Frequency range (E4448A) | 3 Hz to 50 GHz |
|---|---|
| Frequency range (E4443A) | 3 Hz to 6.7 GHz |
| Amplitude range | 0 to 70 dB in 2 dB steps |
| Resolution bandwidth range | 1 Hz to 3 MHz (10 % steps) |
| Input VSWR (50 MHz‑3 GHz) | < 1.2:1 |
| Maximum safe input level | +30 dBm (1 W) |
Model E4443A covers a frequency range of 3 Hz to 6.7 GHz (DC coupled).
The maximum safe input level is +30 dBm (1 W).
Standard warranty is three years.
