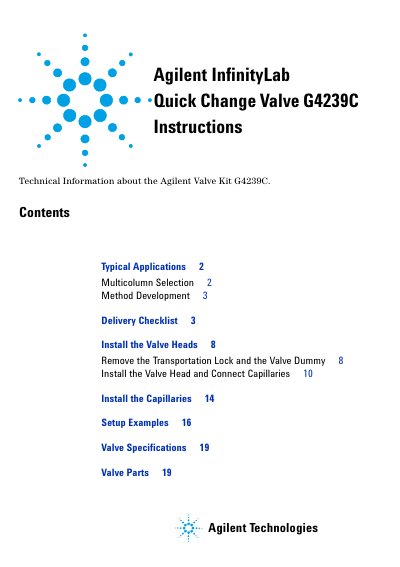

Agilent InfinityLab Quick Change Valve G4239C Instructions

Technical instructions for installing, configuring, and maintaining the Agilent InfinityLab Quick Change Valve G4239C.

Brand: Agilent
Category: Other
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.6 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 2C837D9866BAB9BA905942CB86FA1754
PDF: Agilent InfinityLab Quick Change Valve G4239C Instructions PDF

About this manual

The document provides technical information and step‑by‑step procedures for the Agilent InfinityLab Quick Change Valve G4239C. It covers typical applications, multicolumn selection advantages, and method‑development benefits for chromatography workflows.

Installation guidance includes removing the transportation lock, mounting valve heads, connecting capillaries, and safety cautions. The manual also lists valve specifications, part numbers, and recommended accessories for proper operation and maintenance.

What's inside

Typical Applications
Multicolumn Selection
Method Development
Delivery Checklist
Install the Valve Heads
Remove the Transportation Lock and the Valve Dummy
Install the Valve Head and Connect Capillaries
Valve Specifications
Valve Parts

Specifications

Maximum pressure	1300 bar
Port size	Accepts M4 male threaded fittings
Liquid contacts	PEEK, Stainless Steel
pH range	0 – 14
Selector type	8ps/18pt, 8‑column selector, 1300 bar

Frequently asked questions

What is the maximum pressure rating of the G4239C valve?

The valve is rated for a maximum pressure of 1300 bar.

What type of fittings does the valve accept?

It accepts M4 male threaded fittings.

What precautions are needed when installing the valve head?

Do not use tools to fasten the nut, ensure the guide pin snaps into the groove, and protect the optical actuator parts from dust.
