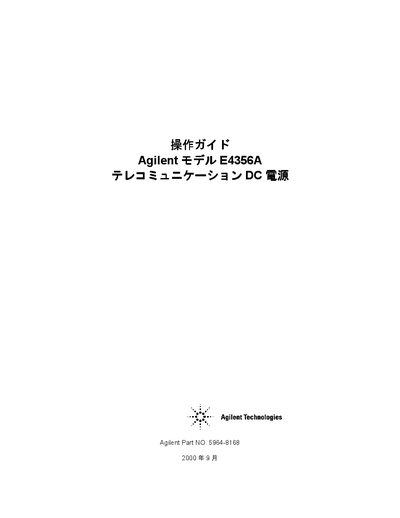

This manual provides installation, operation, calibration, and troubleshooting instructions for the Agilent E4356A telecommunications DC power supply.
The Operating Guide explains how to safely install and use the Agilent E4356A telecommunications DC power supply. It includes safety warnings, grounding requirements, and environmental limits such as humidity and altitude.
The document covers installation steps, front‑panel and remote programming, analog programming, output characteristics, calibration procedures, verification testing, accessory options, and specifications. It also provides detailed wiring diagrams and troubleshooting information. This manual is written in Japanese.
| Input Power (230 Vac) Rated Power | 200 |
|---|---|
| Input Power (200 Vac) Rated Power | 831 |
| Maximum Relative Humidity (operating) | 95 % |
| Maximum Altitude | 2000 m |
| Safety Class | Class 1 |
It is classified as safety class 1.
The unit can be powered from 230 Vac (rated 200) or 200 Vac (rated 831).
