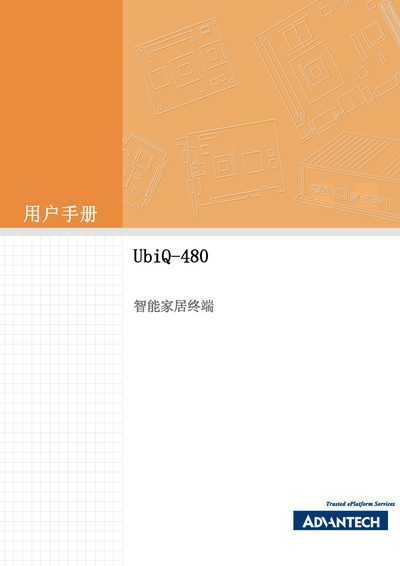

The Advantech UbiQ-480 Smart Home Terminal User Manual provides an overview, hardware and software specifications, safety instructions, and design…
The UbiQ-480 is a Windows‑based smart home terminal from Advantech, featuring a FreeScale i.MX31 523 MHz processor, a 7‑inch touch screen, Ethernet, audio, and optional PoE. It is designed for home and building automation, offering appliance control, remote security monitoring, and various I/O interfaces.
The manual is organized into three main sections: an overview of the product and system configuration, detailed hardware and software specifications (including mechanical dimensions, power requirements, and interface details), and design requirements covering environmental specifications, reliability, and safety instructions. This manual is written in Chinese.
| Processor | FreeScale i.MX31 523 MHz |
|---|---|
| Memory | 256 MB DDR |
| Dimensions (W×H×D) | 261.26 mm × 196.26 mm × 37 mm |
| Power Consumption | < 8 W |
| Operating Temperature | 0 °C ~ 40 °C |
| Storage Temperature | 0 °C ~ 60 °C |
| Relative Humidity | 0 % ~ 95 % RH (no condensation) |
| Programmable Function Keys | 6 |
| LAN Ports | 2 |
| PoE Power | Optional |
| DC Input Voltage | 10 V ~ 24 V |
The device operates between 0 °C and 40 °C.
It provides six programmable function keys.
The required DC input voltage is 10 V to 24 V.
Unplug the unit before cleaning and do not use liquids or cleaning sprays.
