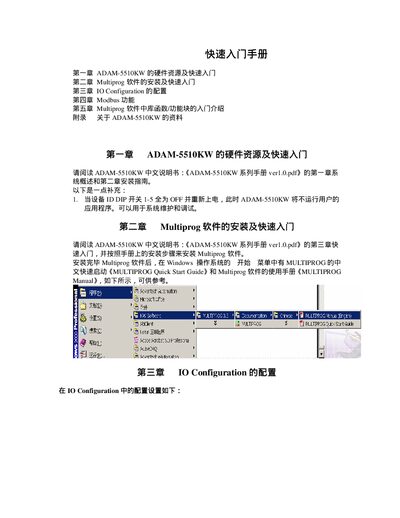

Advantech ADAM-5510KW User Manual

User manual for the Advantech ADAM-5510KW industrial I/O module covering configuration, Modbus communication and Multiprog programming.

Brand: Advantech
Category: Industrial Supply
Document type: User Manual
Language: English
Pages: 7
File format: PDF
File size: 354 KB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 25D26F473B5284764A10E5E3C8D7BE99
PDF: Advantech ADAM-5510KW User Manual PDF

About this manual

The ADAM-5510KW manual provides step‑by‑step instructions for configuring digital and analog I/O, setting up Modbus communication, and using the Multiprog software to program the module. It includes address tables, wiring diagrams and function descriptions for both master and slave modes.

Additional sections cover startup procedures, troubleshooting tips, and reference links to Advantech support resources. The document is organized for quick reference by engineers and technicians working with industrial automation systems.

What's inside

IO Configuration
Modbus Communication
Multiprog Programming
Startup Procedure
Address Mapping
Digital Input/Output
Analog Input/Output

Specifications

Digital Input Channels	16
Supported Communication Protocols	Modbus/RTU Master, Modbus/RTU Slave, Modbus/TCP Server, Modbus/TCP Client
Memory Length	16 bits

Frequently asked questions

What communication protocols does the ADAM-5510KW support?

It supports Modbus/RTU Master, Modbus/RTU Slave, Modbus/TCP Server and Modbus/TCP Client functions.

How many digital input channels are available on the ADAM-5510KW?

The module provides 16 digital input channels, addressed from %IB0 to %IB15.

Which software is used to program the ADAM-5510KW?

The module is programmed using Advantech's Multiprog software.
