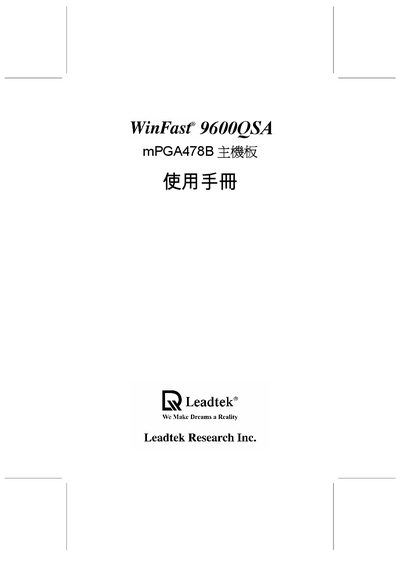

This document is a user manual for the 9600QSA mPGA478B motherboard produced by Leadtek Technology Co., Ltd. The manual introduces the packaging contents, specifications, quick setup, hardware installation, BIOS settings, installation of drivers, and more.
This document introduces the WinFast 9600QSA motherboard, which uses a Socket 478 Intel Pentium 4 CPU and supports AGP 1X/2X/4X graphics. It lists the supplied accessories, chipset details, and key features such as ACPI, APM, USB ports, and Wake‑On‑LAN.
The guide covers step‑by‑step installation of the CPU, memory, AGP card, and other connectors, BIOS setup options, driver installation for audio, network, and IDE devices, as well as troubleshooting procedures and warranty terms. This manual is written in Chinese.
| CPU socket | Socket 478 |
|---|---|
| AGP support | 1X/2X/4X |
| BIOS type | Award BIOS |
| Ethernet controller | Realtek 8100B 10/100 |
| Power management | APM and ACPI support |
| Chipset | mtel 845 |
It uses a Socket 478 CPU socket for Intel Pentium 4 processors.
Use the AWARD BIOS update utility provided in the appendix of the manual.
A limited warranty of 15 months from the date of purchase, covering repair or replacement for manufacturing defects.
Email [email protected] or call the listed phone numbers for assistance.
