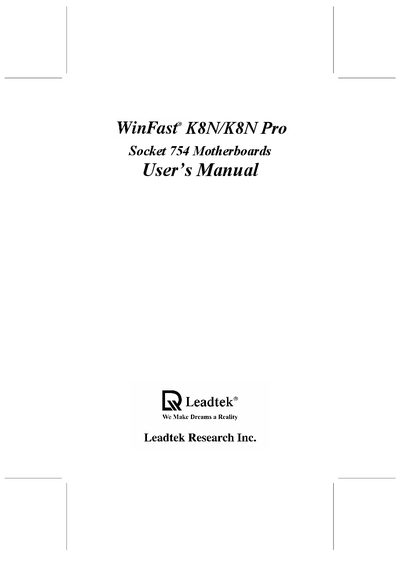

winfast K8N/K8N Pro Socket 754 Motherboards User Manual

K8N/K8N Pro Socket 754 Motherboards User's Manual

Brand: WinFast
Category: Motherboard
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 2.8 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: 4D0E13DEF8C9D3BDED9209B4AAE7BCA2
PDF: winfast K8N/K8N Pro Socket 754 Motherboards User Manual PDF

About this manual

This manual covers the WinFast K8N/K8N Pro ATX motherboard, which uses a Socket 754 for AMD Athlon 64 CPUs and integrates an NVIDIA eNOVA X‑Wall LX64 chipset. It details supported memory types, expansion slots, storage interfaces, and audio features.

The guide walks users through quick jumper settings, hardware installation, BIOS options, driver installation for chipset, LAN and SATA, speed‑gear utilities, and includes an appendix with BIOS flashing, troubleshooting, technical support, FCC compliance, and warranty information.

What's inside

Introduction
Specifications
Quick Setting
Hardware Setup
BIOS Setup
Driver Installation
Speed Gear Operation
Appendix
Troubleshooting
Warranty

Specifications

CPU socket	Socket 754
Chipset	NVIDIA eNOVA X‑Wall LX64
Memory types	PC1600/PC2100/PC2700/PC3200 DDR
Storage interfaces	Serial ATA (RAID), IEEE1394, USB2.0
Audio	6‑channel audio
Form factor	ATX

Frequently asked questions

How do I update the BIOS on the WinFast K8N motherboard?

Copy the AWDFLASH.EXE program and the new BIOS binary to a new directory on the CD or floppy, then run AWDFLASH with the filename to flash the BIOS.

What memory modules are supported?

The board supports DDR memory modules of PC1600, PC2100, PC2700, and PC3200 types.
