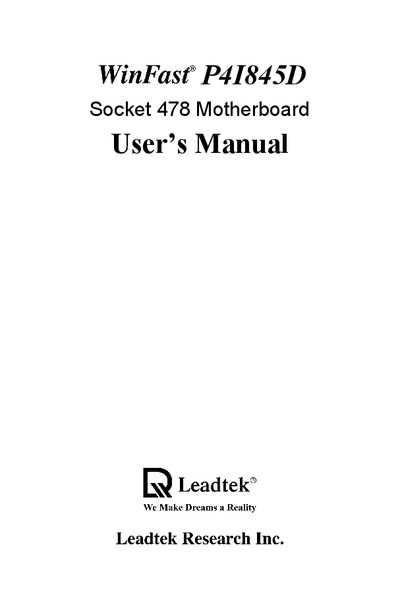

This document is the user manual for the P4I845D Socket 478 motherboard. It provides information on the specifications and package content of the motherboard, as well as a quick setup guide.
This manual introduces the WinFast P4I845D desktop motherboard, based on the Intel 845 chipset and supporting Intel Pentium 4 (478‑pin) CPUs, up to 2 GB DDR memory, four USB ports, and optional 10/100 Mb/s LAN. It details hardware installation, jumper settings, BIOS configuration, and driver installation for Windows operating systems.
Additional sections cover speed‑gear utilities, troubleshooting procedures, FCC compliance, and the one‑year limited warranty, along with contact information for technical support.
| CPU Support | Intel Pentium 4 (478‑pin package) |
|---|---|
| Chipset | Intel 845D |
| Memory Slots | Two 184‑pin DDR DIMM slots, up to 2 GB |
| On‑board I/O | Four USB ports, 10/100 Mb/s LAN (optional), two PCI‑EIDE, four IDE, two FDD, parallel and serial ports |
| Expansion Slots | Five PCI slots, one AGP 2.0 (1.5 V, 4X), one CNR slot |
Technical support can be reached by email at [email protected].
The board supports Intel Pentium 4 processors in a 478‑pin package.
It accepts DDR memory using two 184‑pin DIMM slots, up to a total of 2 GB.
