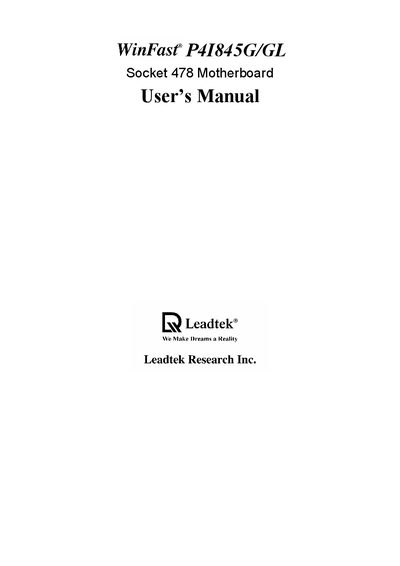

This document is the user manual for the P4I845G/GL Socket 478 motherboard, which provides information on the specifications and usage of the motherboard.
The WinFast P4I845G/GL is a Socket 478 ATX motherboard built around the Intel 845G/GL chipset with an integrated Intel 830M 2D/3D graphics chip, six USB 2.0 ports, optional 10/100 Mbps LAN, and CMI8738 audio. It supports Intel Pentium 4 CPUs, up to 2 GB DDR200/DDR266 memory, and offers five PCI slots, an AGP slot and a CNR slot.
The manual covers package contents, detailed specifications, jumper and connector listings, hardware setup, CPU and memory installation, driver installation for chipset, VGA, audio and LAN, as well as BIOS configuration, speed‑gear operation, and appendices for technical support, FCC compliance, and warranty information.
| CPU Support | Intel Pentium 4 (478‑pin package) |
|---|---|
| Chipset | Intel 845G/GL + ICH4 |
| Memory | 2 DDR DIMM slots, DDR200/DDR266, up to 2 GB |
| On‑board VGA | Integrated Intel 830M 2D/3D graphics chip |
| USB Ports | Six USB 2.0 ports |
| LAN | Optional 10/100 Mbps Ethernet |
| Audio | CMI8738 audio chipset |
| Expansion Slots | Five PCI slots, one AGP slot, one CNR slot |
| Power Management | Supports SMM, APM and ACPI |
It supports Intel Pentium 4 processors in a 478‑pin package.
The board provides up to six USB 2.0 ports.
The integrated graphics chip is an Intel 830M 2D/3D processor.
It has two DDR DIMM slots that support DDR200/DDR266 memory up to 2 GB.
