This document is a user manual for a LCD digital tablet, which introduces the installation, usage of the digital pen, customization of the digital pen, and the use of the radial menu and other features and operations of the LCD digital tablet.

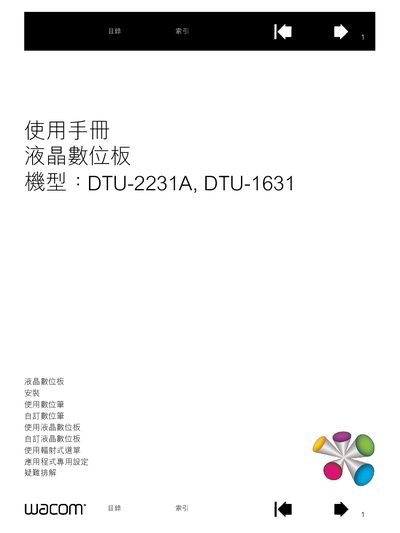

This manual explains how to install and set up the Wacom DTU‑2231A and DTU‑1631 liquid‑crystal digitizer boards, including monitor mounting, USB connection, and software installation. It also describes the functions of the digitizer, pen operation, and ergonomic handling.
Additional sections cover display‑tilt adjustment, OSD settings, pen‑nib replacement, multi‑tablet configuration, and detailed troubleshooting for Windows, Macintosh, VGA and general display issues. Contact information for Wacom regional offices is provided at the end of the document. This manual is written in Chinese.
| Model | DTU-2231A |
|---|---|
| Model | DTU-1631 |
| Pen Model | UP-817E |
| Pen Model | UP-818E |
| Power Transformer | Included for DTU-2231A |
Use the OSD control keys to adjust the display tilt as described in the "调整显示器倾斜程度" section.
The digitizer works with both Windows and Macintosh computers, as noted in the manual.
Calibration is performed via the "校正液晶数位板" function described in the manual.
