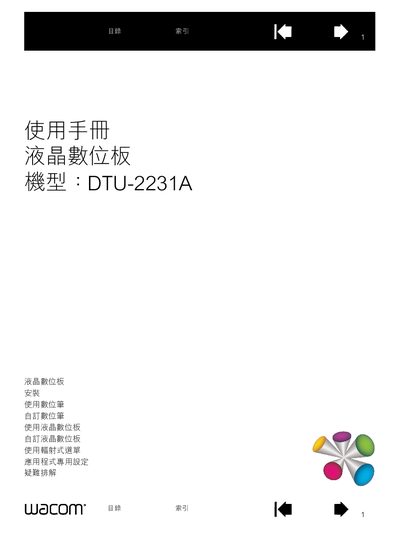

Wacom DTU-2231A Liquid Crystal Digitizer Board User Manual

Instruction manual for LCD graphics tablet, introduces the installation, use, customization, adjustment of the display screen, etc.

Brand: Wacom
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 80
File format: PDF
File size: 2.4 MB
Updated: 30 September, 2023
Model: DTU-2231A
MD5 checksum: 4AE05D532E8DAB76F69CF56C50C99DEB
PDF: Wacom DTU-2231A Liquid Crystal Digitizer Board User Manual PDF

About this manual

This manual explains how to install the DTU-2231A digitizer board, connect it to a computer via USB, and install the required software. It covers system requirements, display adjustment using the OSD control keys, and calibration of the tablet.

The guide also details pen customization, tip replacement, ergonomic handling, multi‑monitor use, and a comprehensive troubleshooting section. Contact information and regulatory notices are included at the end of the document. This manual is written in Chinese.

What's inside

Installation
System Requirements
Display Adjustment (OSD)
Calibration
Pen Customization
Troubleshooting
Specifications
Safety and Regulatory Information

Specifications

Pen models supported	UP-817E, UP-818E
