This manual introduces the characteristics, models, installation, use, maintenance and other information of the DVP-SC series programmable controller.

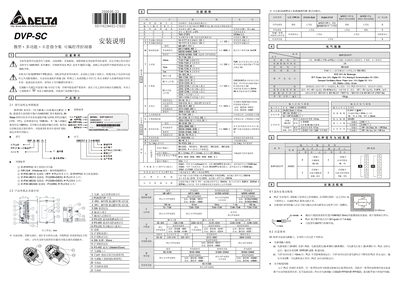

This guide provides detailed instructions for installing the Delta DVP‑SC micro programmable controller. It includes safety precautions, wiring diagrams, power‑up procedures, and recommended protective measures for the controller housing.
The manual also describes the controller’s functional and electrical specifications, I/O configuration, trial‑run steps, and methods for diagnosing common error conditions such as LED indicators and battery‑low warnings. This manual is written in Chinese.
| Power supply voltage (main unit) | 24 VDC (-15%~+20%) |
|---|---|
| Power consumption (max) | 4 W |
| Input current per point | 5 mA |
| Output current per point | 30 mA |
| Insulation resistance (all points to ground) | ≥5 MΩ |
| Operating temperature range | 0 °C ~ 55 °C |
| Storage temperature range | -25 °C ~ 70 °C |
Use 22‑16 AWG (1.5 mm) single‑core or multi‑core copper wire for all input and output terminals.
