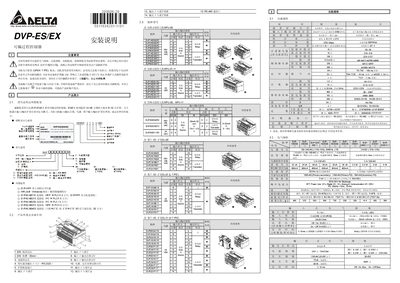

This document is the installation manual of Delta DVP-ES/EX programmable controller, introducing the product's model, specifications, installation methods, precautions, etc.
The manual explains the safety precautions, required enclosure conditions, and grounding measures needed before installing the DVP‑ES/EX controller. It also describes the environmental limits for operation and storage, and the steps for mounting the unit in a DIN‑rail or panel enclosure.
Detailed sections cover the controller’s functional and electrical specifications, analog‑digital I/O ranges, wiring diagrams, trial‑run procedures, and troubleshooting methods using LED indicators and error codes. This manual is written in Chinese.
| AC power supply voltage | 100~240 VAC, 50/60 Hz |
|---|---|
| DC power supply voltage | 24 VDC, -15%~+10% |
| Power consumption (DVP14ES00R2) | 20 VA |
| Analog input voltage range | -10 V to +10 V |
| Relay output current rating | 2 A per point (5 A COM) |
The PLC continues operating if the power interruption is less than 10 ms for AC input or less than 5 ms for DC input.
