01PU Locator Controller Module is a speed or position control module that can be applied to stepper or servo drive systems. It has a maximum output of 200 KPPS pulses and has a variety of travel control modes.
The DVP-01PU is a positioning control module designed for stepper or servo drive systems, offering up to 200 KPPS pulse output and multiple motion control modes. It connects to Delta EH series PLCs via a 54‑register control register set.

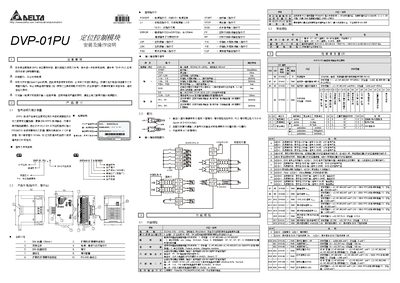

This manual covers safety precautions, mechanical installation, wiring diagrams, functional specifications, control register descriptions, communication settings, input/output terminal functions, error codes, and troubleshooting procedures. This manual is written in Chinese.
| Input Power | DC24V (-15% to +20%), 140±30 mA |
|---|---|
| Maximum Connected Axes | 8 axes |
| Maximum Pulse Output | 200 KPPS |
| Storage Temperature | -25 ℃ to 70 ℃ |
| Supported Baud Rates | 4800, 9600, 19200, 38400, 57600, 115200 bps |
The module requires DC24V with a tolerance of –15% to +20% and consumes 140 ± 30 mA.
Up to eight axes can be connected.
The module supports 4800, 9600, 19200, 38400, 57600, and 115200 bps.
The maximum pulse output is 200 KPPS.
