DAM-E3011 is a 8-channel isolated digital input and 1-channel isolated digital output module that supports 10/100Mbps Ethernet and can be used as a 500Hz counter.
The DAM‑E3011 is an 8‑channel isolated digital input and 1‑channel isolated digital output data acquisition module. It supports both Ethernet (10/100 Mbps) and Modbus protocols (TCP, RTU, ASCII) for integration into industrial control networks.

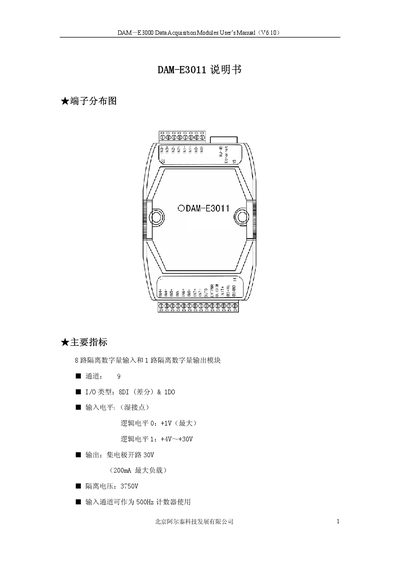

The manual provides wiring diagrams, electrical specifications, Modbus function codes, address mapping tables, and EEPROM configuration information for setup, operation, and troubleshooting. This manual is written in Chinese.
| Input type | Differential (8DI) & 1DO |
|---|---|
| Logic level 0 | +1 V (max) |
| Logic level 1 | +4 V to +30 V |
| Output type | Open‑collector 30 V, 200 mA max load |
| Isolation voltage | 3750 V |
| Input channel counting capability | 500 Hz counter |
| Output channel pulse capability | 500 Hz pulse output |
| Ethernet support | 10/100 Mbps |
| Power supply | +10 V to +30 V DC |
| Power consumption | 1.5 W @ 24 V |
It supports Modbus TCP, Modbus RTU, and Modbus ASCII protocols.
The isolation voltage rating is 3750 V.
The device consumes about 1.5 W when powered at 24 V.
